:: INDUSTRIAL VALVES :: |
| |
"HaMa EngineeringPvt. Ltd." offer Wide Range industrial valve & Accessories. We are offered at nominal prices & ensure that all these valves are stringently tested on diverse quality parameters so as to assure their defect-free nature. Our range is accredited for its dimensional accuracy, excellent performance, sturdy construction, durability and corrosion resistance. This range includes the following : |
|
|
|

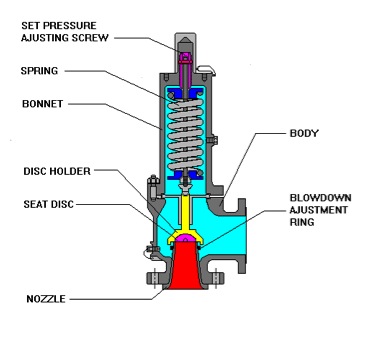

These Safety Relief Valves and flame arrestors are used in industries for proper control of gas flow and for offering safety against fire eruption. We have also fitted safety relief valves in vessels, which helps in preventing an undue rise in pressure. These valves are offered with customized solutions so as to cater to the wider specifications of our clients.
|
|
|
|
|
Plug Valve Regular Pattern, Standard Type Wrench Operated Valve.
Specification:
Class 125 flange dimensions and drilling in accordance with ANSI B 16.1 BSPT "D" AND "F" flange dimensions and drilling in accordance with BS10.
These valves have a port area substantially equal to the bore of pipe where full area is not essential economies can be made by the use of short pattern valves having reduced area.
|
|
|
|
|
|

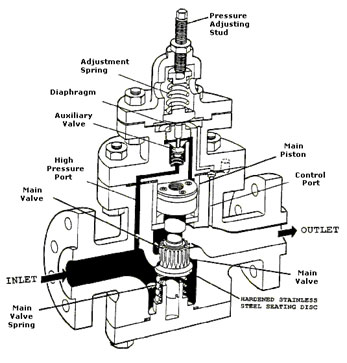

Our organization is engaged in trading and supplying a wide range of Pressure Reducing Valve. These valves have the maximum working condition of 26 kg/cm2 at 300°C and body design conditions 42 kg/cm2 at 427°C. Moreover, these have the cold hydraulic test pressure of 52 kg/cm2 without internals. Customers can avail these products at market leading prices. Following is the range of products offered by us:
Spring ranges:
Downstream pressure spring ranges:
- Yellow: 0.2 to 3 kg/cm2
- Blue: 2.5 to 7 kg/cm2
- Red: 6.0 to 17.3 kg/cm2
- Grey: 16.3 to 24.4 kg/cm2
- Sizes: NB 15 LC, 15, 20, 25, 40, 50 and 80
|
|
|
|
|

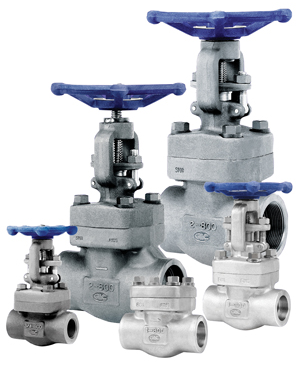

We are engaged in offering a quality range of Steel Forged Valves to our esteemed customers to meet their varied industrial requirements in the best possible manner. These products are available in varied specifications to meet the requirements of different industries and sectors. We also make sure to deliver these products at the customers' end within the postulated time period.
Features:
- Optimum performance
- Corrosion resistance
- High tensile strength.
|
|
|
|
|
These valves have a rigid and sturdy design with a minimum pressure loss across the line. They are available in both rising as well as non rising types in a large number of sizes ranging from 40mm (1.1/2”) to 1300mm (52”). They find a major application in industries such as Waste Water Treatment plant, Effluent & Sewage Treatment Plants, Sugar Industry, Paper & Pulp Industry and Various other water works.
|
|
|
|
Forged Carbon steel Hand operated Outside screw & yoke rising spindle/stem, bolted bonnet and positive back seat , Body & Bonnet made of Forged Carbon Steel to ASTM A 105. Seat ring disc and stem of 13% Cr. SS Socket-weld ends to ANSI B 16.11. Body tested to 3000 PSIG and seat to 2200 PSIG hydraulically with IBR and Manufacturers Guarantee Certificate. Sizes ½” to 2”.
|
|
|
|
We offer a wide range of Blue Down Valve that is manufactured from quality raw material and have diverse application area. These valves are designed as per client requirements and have the following essential features:
- Durable
- Resistant to corrosion
- Easy installation
|
|
|
|
|
Piston valve was Innovated by replacing the disk and seat of a conventional globe valve with a cylindrical piston and two resilient, replaceable sealing rings. Constant research and development have resulted in sealing rings that provide the piston valve with an extraordinary ability to seal line pressure and prevent leakage to the atmosphere.
Independent testing laboratories have subjected piston valves to API fire tests and Helium leak tests. The piston valve has out-performed other generic valve types in these tests; and these results have been consistently confirmed by extraordinary performance in customer installations.:
FEATURES :
- Larger effective sealing area :
- Leak proof isolation - Class 6 shut off achieved.
- Durability - Piston unexposed to media
- Absence of Gland & Seat
- Maintenance friendly - Uniform sealing rings on both the sides & maintenance can be done without removing the valve from the pipe line. (On-line Maintenance)
- User Friendly - It does not need Valve Key
- The Only Scrap Free Valve
- Self Lubricating
- Self Cleaning
|
|
|
|
|
|
We are reckoned trader and supplier of supreme grade Bellow Seal Valve. The offered valve is manufactured using optimum grade material and advanced techniques at our vendor’s well-equipped manufacturing unit. This valve is widely used in different industries for controlling flow or pressure of liquid in desired direction. It is made available in different technical specifications for our clients with different choices. Clients can avail this valve from us at market leading price.
Features:
- Sturdy construction
- Reliable performance
- Unmatched quality
|
|
|
|
These Diapharm Valves are excellent in performance and known as process flow regulation devices. The simple component in these valves clearly differentiates these valves from other types of control or check valves. These valves are similar to the human diaphragm, where the partition of muscle and connective tissue distinguishes the chest and abdominal cavities. It also helps the lungs to effectively fill up with air then let it out. Our valves are designed from elastomers like polyethylene and polypropylene, which help in sealing a process flow line. These valves can be lifted open or pushed closed for allowing the passage or blocking the process stream. Our range is actuated for making it capable of precision regulation of gases, liquids and semi-solid scurries. :
- Durable
- Resistant to corrosion
- Easy installation
|
|
|
|
|
Flanged ends to din 2533 np-l 6rf up to 150mm. straight pattern, bolted bonnet.renewable l 3% cr. Stainless steel (a. Sl-410) working parts. Minimum pressure drop inside the body due to streamlined body design. Compelling visual appeal.pressure & temperature for 200mm valve is as per pnlo & flanges to np.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HaMa Valve offer Cast Steel check Valve Class 125 flanged end connections, 175 psi/12.1 bar non-shock water working pressure (WWP), Iron body, bronze mounted trim (IBBM), Bolted bonnet, Renewable seat and disc, All sizes tapped ¾” at location “C” for ball drip assembly, Flanged end connections, Use in U.S. drinking water applications is prohibited after January 3, 2014 Conforms to MSS SP-71, Listed by Underwriters Laboratories of US and Canada (UL/ULC), FM Approved, Approved by New York City BSA 143-69-SA Size range 2½” to 12”.
|
|
|
|
Three-way change over Valves with safety gland packing in flange design is manufactured with reference standard BS-1873 and can be supplied in Carbon Steel (ASTM-A-216 Gr. WCB), Stainless Steel (ASTM-A-351 Gr. CF8M/CF8/CF3/CF3M) and low temperature steel or any other material as
per requirement.
Change-over valves allows essential maintenance work to be carried out on a safety valve, without interruption of the plant operation, simply by changing over to the relevant stand by valve, thus protecting the plant against excessive over pressure. Plants are protected against undue excess pressure by switching over to the relevant standby safety valves. Full blow off capacity is maintained when the change-over-valve switches over from one side to the other. When using change-over-valves in tandem, both hand wheels are linked via a chain wheel in order to assure simultaneous operation. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
